E002A/AR0230 2MP

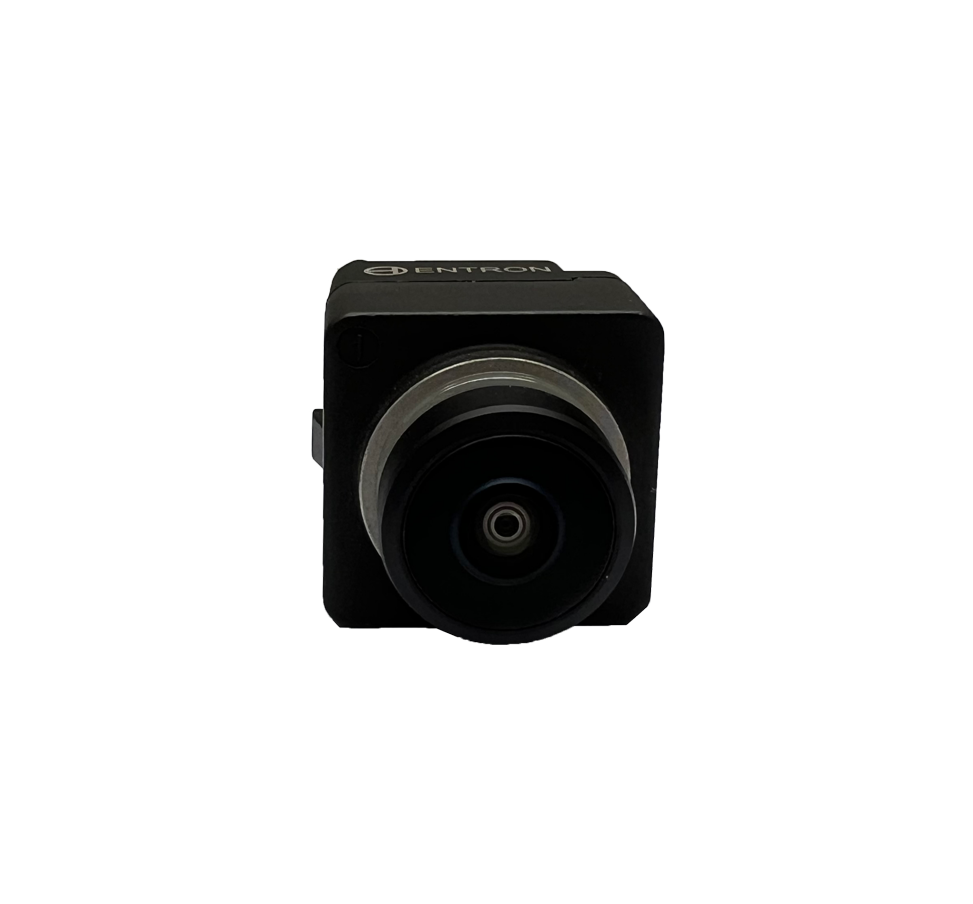

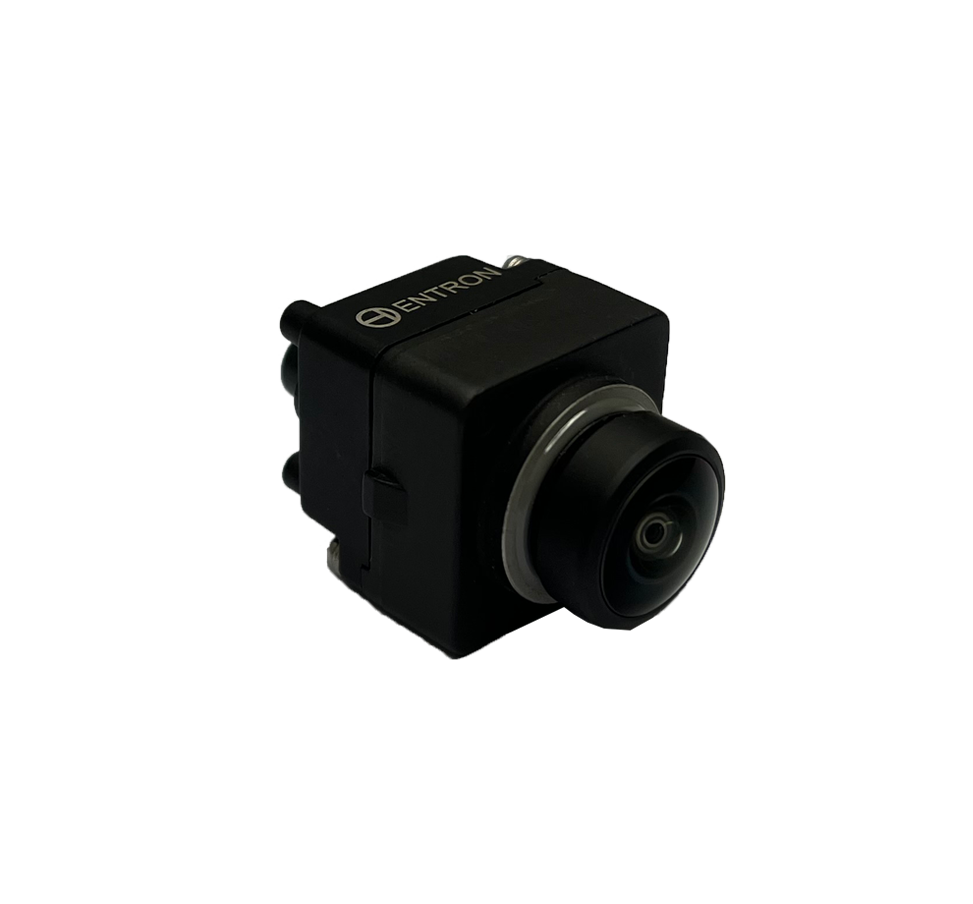

The E002A FalconView® is a high resolution automotive LVDS interface camera module with high dynamic range and superior image performance. This camera module includes FalconView® optics lens and customizable resolution YUV output image based on 1920x1080 with low voltage differential signaling encode chip and switchable vertical perspective angles to cover variety E-mirror applications.

Features

• 25fps(30fps overclocking)

• 2-exposure HDR mode or linear mode at 1920*1080 using parallel interface.

• Support linear and high dynamic range (HDR) mode.

• Support external synchronizing function for multi-camera system.

• 8V~16V wide voltage input.

• Low power consumption: 1W (1920*1080, parallel@25 fps).

• YUV422 8bit output LVDS interface.

• Automotive grade design and construction.

• FAKRA Z type cable connector

Application

• E-Mirror Replacement

• High dynamic range imaging

• Viewing applications
