F008A/AR0820 8.3MP

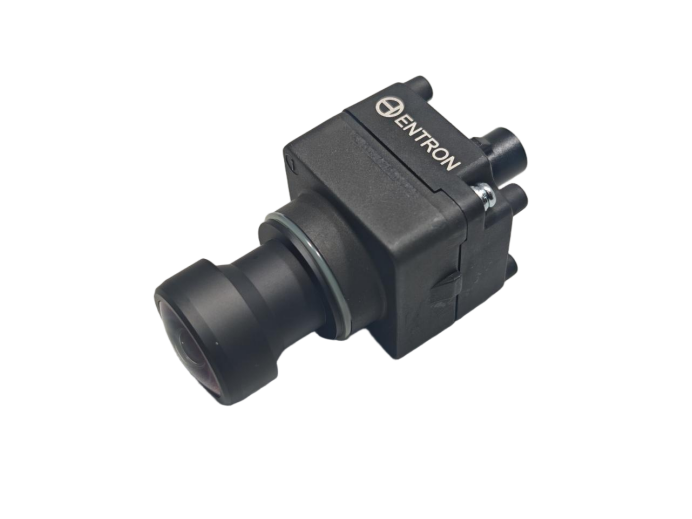

The F008A FalconView® is a high resolution automotive LVDS camera with high dynamic range and superior image performance. This camera includes FalconView® optics lens, 8M CMOS image sensor with low voltage differential signaling encode chip.

Features

• 8.3M (3840*2160) resolution, 2.1um pixel size, 1/1.7-inch image sensor.
• 4-exposure HDR at full resolution 30 fps, 3-exposure HDR at full resolution 40fps.
• Support linear and high dynamic range (HDR) mode.
• Sensor Fault Detection for ASIL-B compliance.
• Support external synchronizing function for multi-camera system.
• 6V~12V wide operation voltage input (recommend 9V).
• Power consumption to 1.5W.
• Support 12,14,16,20,24-bit RCCB/RGGB raw output by LVDS interface.
• Automotive grade design and construction.
• FAKRA Z type cable connector

Application

• Autonomous  driving

• Automotive ADAS

• High dynamic range imaging

• Others viewing applications
