F009A/AR0823 8.3MP ​​

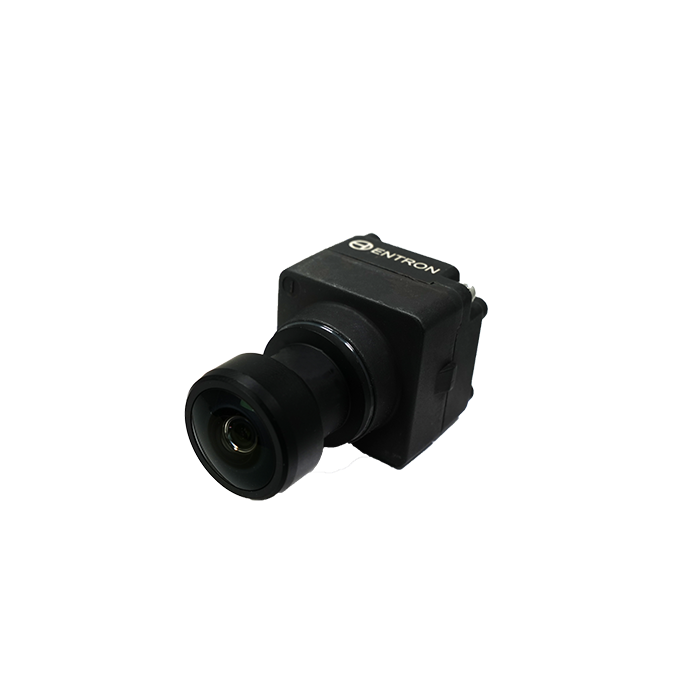

The F009A FalconView® is a high resolution automotive LVDS camera with high dynamic range and superior image performance. This camera includes FalconView® optics lens, 8M CMOS image sensor with low voltage differential signaling encode chip.

This product is compatible with NVIDIA platforms.

Features

• 8.3M (3840*2160) resolution, 2.1um pixel size, 1/2-inch image sensor.
• 3840 x 2160 at up to 60 fps
• Support linear and high dynamic range (HDR) +LFM mode.
• Sensor Fault Detection for ASIL-C compliance.
• Support external synchronizing function for multi-camera system.
• 8V~12V wide operation voltage input.
• Power consumption to TBD
• Support 12,14,16,20,24-bit RGGB raw output by LVDS interface.
• Automotive grade design and construction.
• FAKRA Z type cable connector

Application

• Autonomous driving

• Automotive ADAS

• High dynamic range imaging

• Others viewing applications
