EUSB002

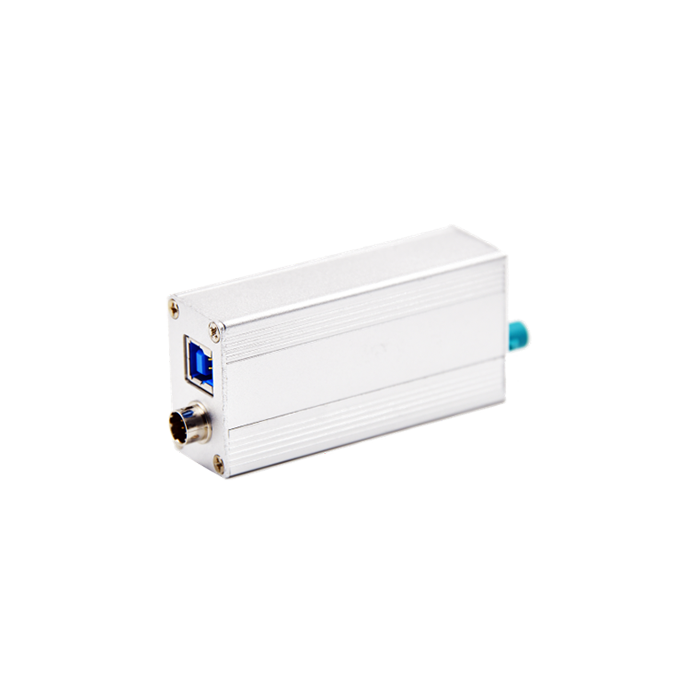

EUSB002 GMSL2 to USB3.0 Converter.

Features

• GMSL1/GMSL2 to USB3.0

• Sync input and output

• EEPROM data read and write

• Sensor register read and write

• GMSL2 integrity tool which can evaluate FAKRA cable and camera

• High speed (4K HDR 12bits 20fps)

• CSI-2 input for debug

• Support I2C debug tool (FT4222, teensy3.2)

• Support camera register summary snapshot

• Linux and Windows display image

• UVC and Entron data protocol selection

• RAW and YUV data output without compression

• Support Windows 10, Linux Ubuntu(provide development SDK) and other OS(under develop) which include UVC drivers

SDK Supported

• Image capture and display

• Save image as Bmp and Raw format

• Window 10 and Linux Ubuntu development SDK(include dynamic library)
