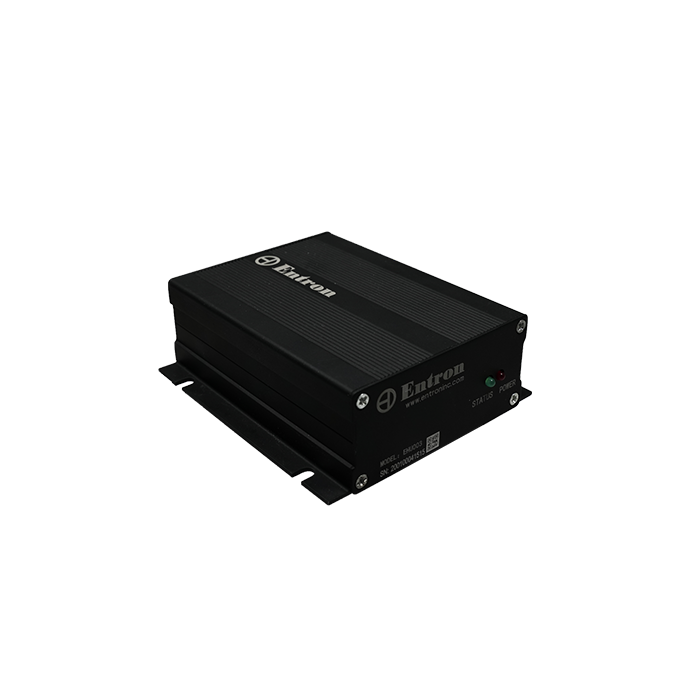

EHS003

Safety Heavy Duty to Anywhere

The Heavy-Duty Water Remove and Deicing System is designed for harsh environments. The system combines mutiple working modes controller, camera module add-on water removal module and intelligent temperature control technology to quickly and effectively remove snow, ice and dirt from camera lens. With outstanding durability and stability, the system can continue to operate stably even under extreme weather conditions.

Features

• Support 2 camera module channels

• Automatic/manual cleaning of lens surface rain, snow, ice, mud, dust

• Support press the key to control the function

• Equipped with dual channel DSP controller, it can control the switching work of two modules

• Equipped with 70°FOV (default) or 120°FOV(in development) camera ultrasonic cleaning module

• Power consumption to 20W (maximum instantaneous power)

• 11V~24V wide operation voltage input (recommend 12V)

• Support ASILB & Cybersecurity

• Automotive grade design and construction

Applications

• Autonomous driving and ADAS

• Camera Clean and Heating Industrial: robotics, mining, agriculture, marine vessel, drone, infrastructure surveillance
